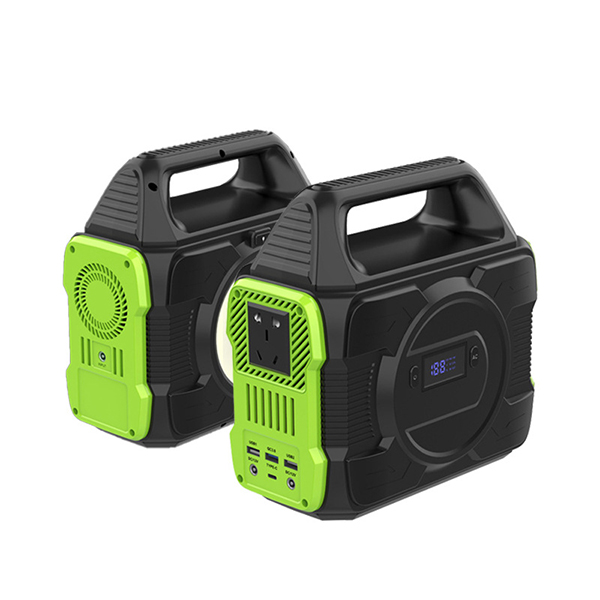

ET8-C002
| LED | 7 w |
| Ac output | 220V |
| Maximum power | 300W sine wave |
| DC output | 12V 10A |
| PD output | 100 w |
| PD output | QC3.0,2.4A |
| Accessories details | Charger, color box, manual, certificate. |
| Measure | 15.5 x 7.0 x 7.5 cm |
| Weight | 1.58 kg / 2.86 kg |
| Input mode | Constant voltage/constant current |
| Input voltage | DC 5V ~ 24V |
| Incoming current | Type-c: PD 100W (5V / 9V / 12V / 15V / 20V) |
| DC:4A | |
| Type-C：2.4A 3A 3A 3A 5A | |
| Quiescent current | ≤300uA |
| Output voltage | Type-C： PD 100W 5V / 9V / 12V / 15V / 20V |
| USB1 / USB2：5V | |
| USB QC3.0:PD18W 5V / 9V / 12V | |
| DC1/DC2:12V - 16.8V | |
| Output current | Type-c：2.4A / 3A / 3A / 3A / 5A |
| USB1 / USB2：2.1A | |
| USB QC3.0: 3A / 2A / 1.5A | |
| DC1 / DC2:8A-10A | |
| AC output | 220V 50Hz / 110V 60Hz |
| Operation method of switch | LED display screen-displays available battery capacity, charging status, |
| AC output, DC USB output, DC output, Yype-c status, | |
| Ac output button-long press to turn AC output on/off. | |
| Main switch-long press to turn on DC output, click to turn on DC switch. | |
| Press the long light button to turn on the light, click the light button to | |
| switch five gears, and press the last gear to turn off the light. | |
| Charging method | 15V4A adapter charging |
| Solar panel charging | |
| PD100W rapid charging | |
| Product size | 25.5 x 12 x 21.5 cm |
| size | 38 x 18.2 x 28.5 cm |
| Single N.W | 1445 kg |
| Single G.W | 1500 kg |
| Carton size | 77.5 x 56 x 30.5 cm |
| Master box Quantity | 6 pcs |
| Net weight | 18 kg |
| Gross weight | 19 kg |
